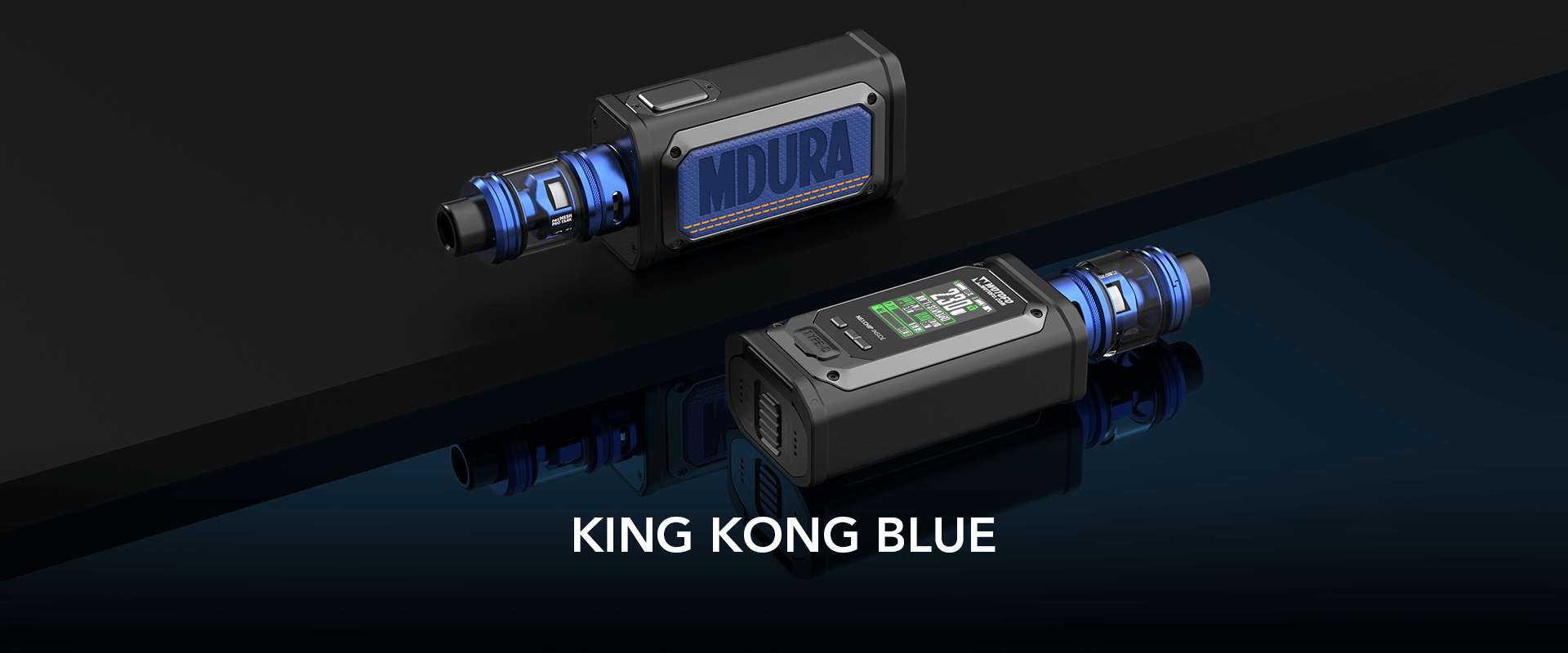

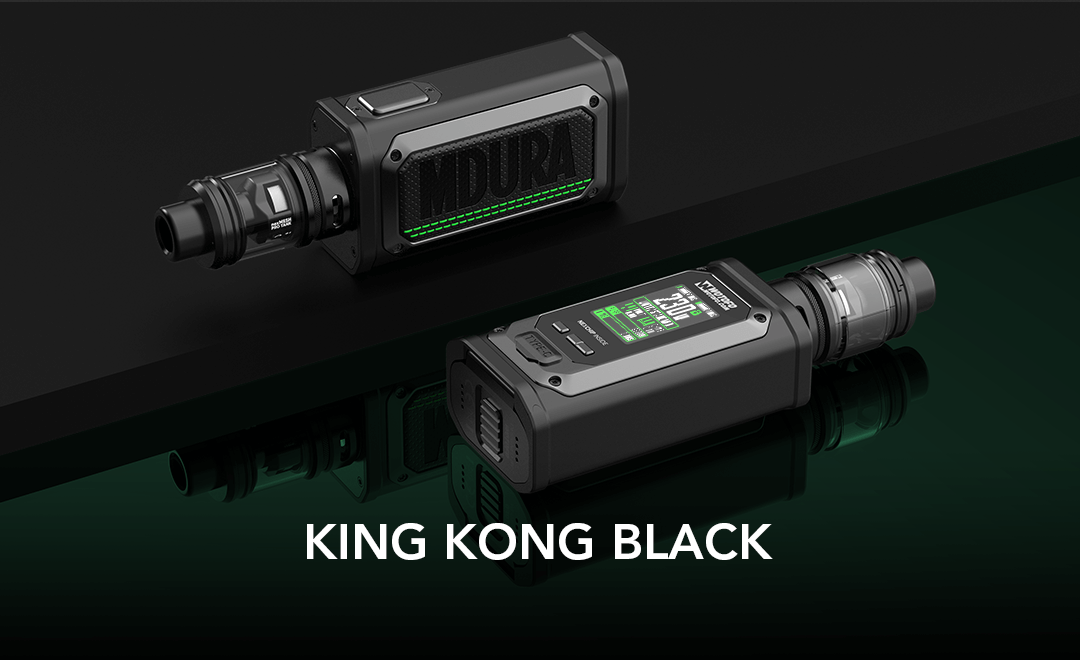

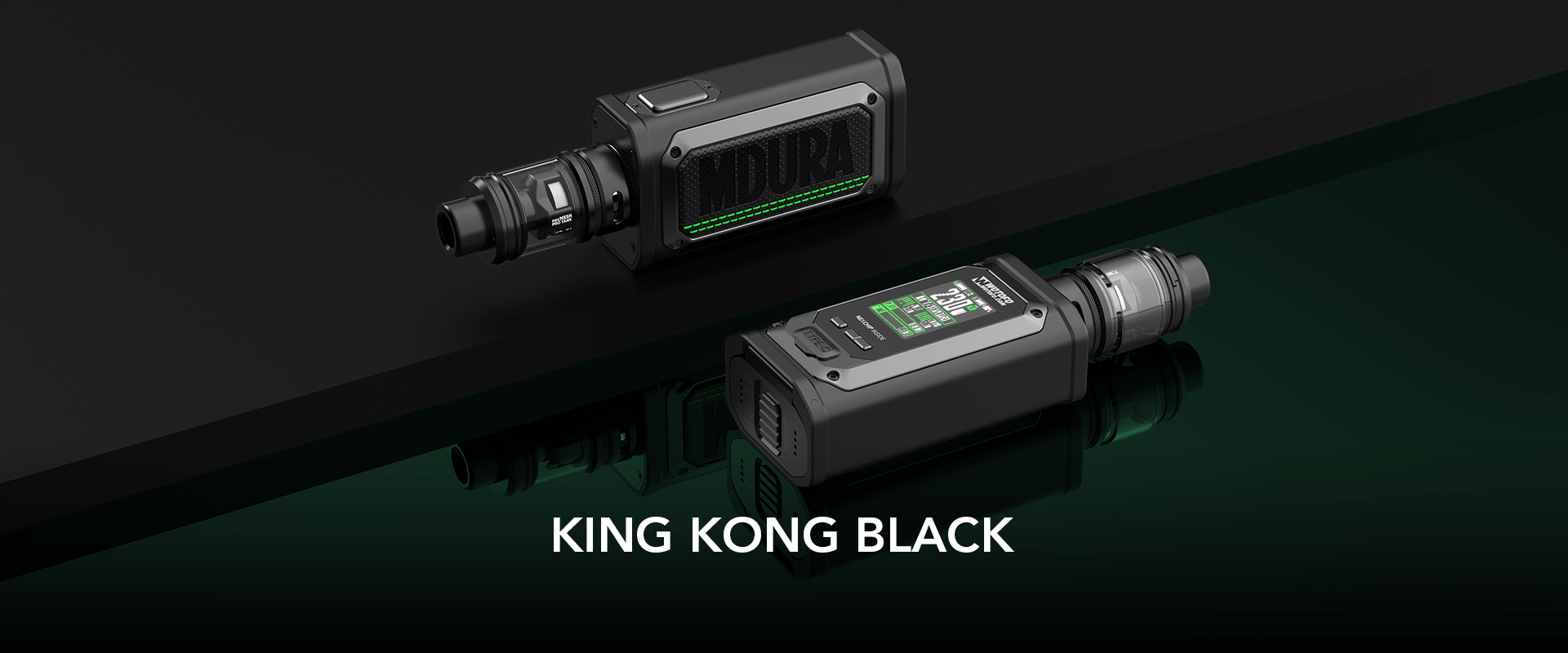

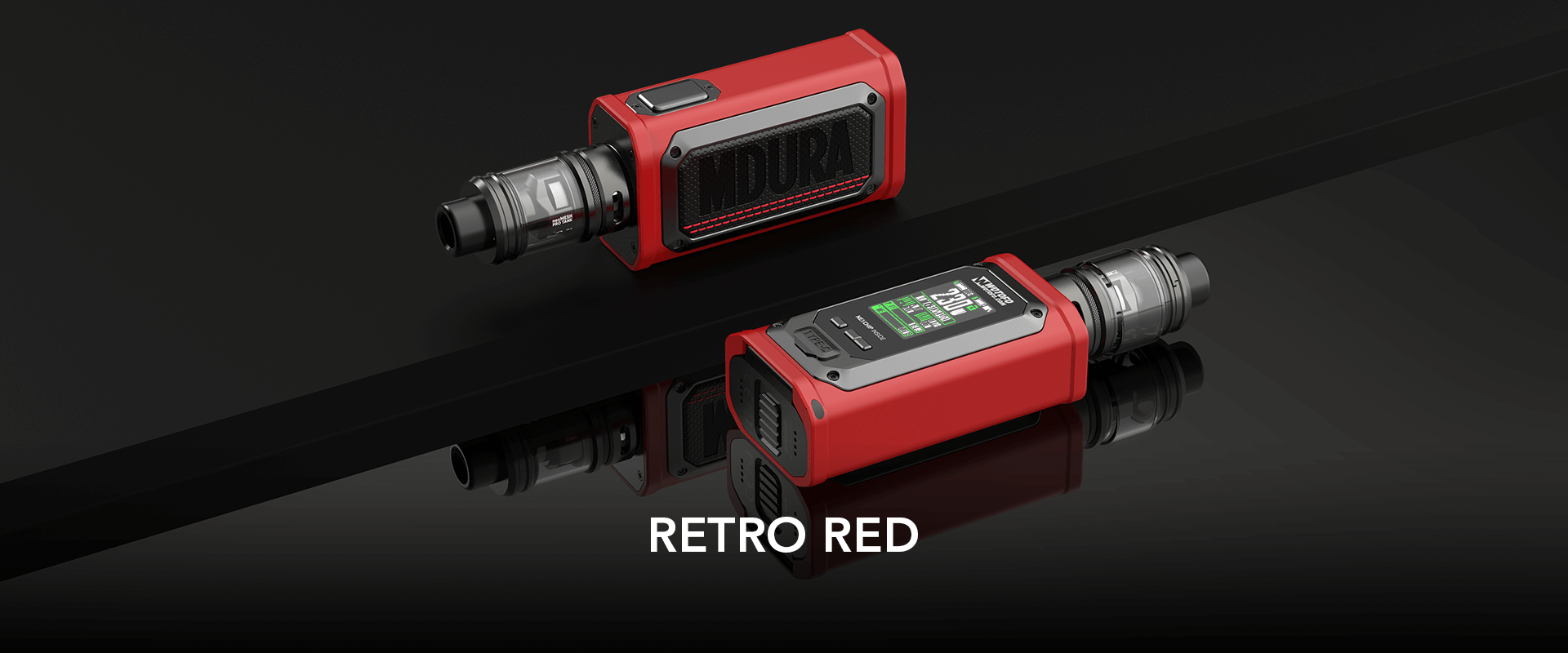

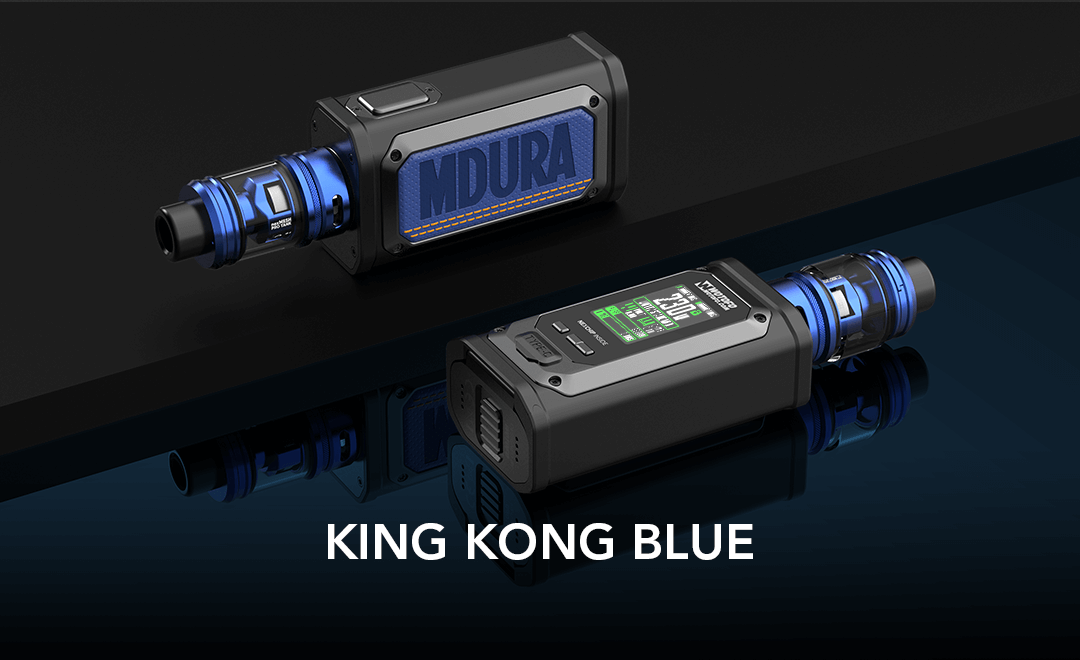

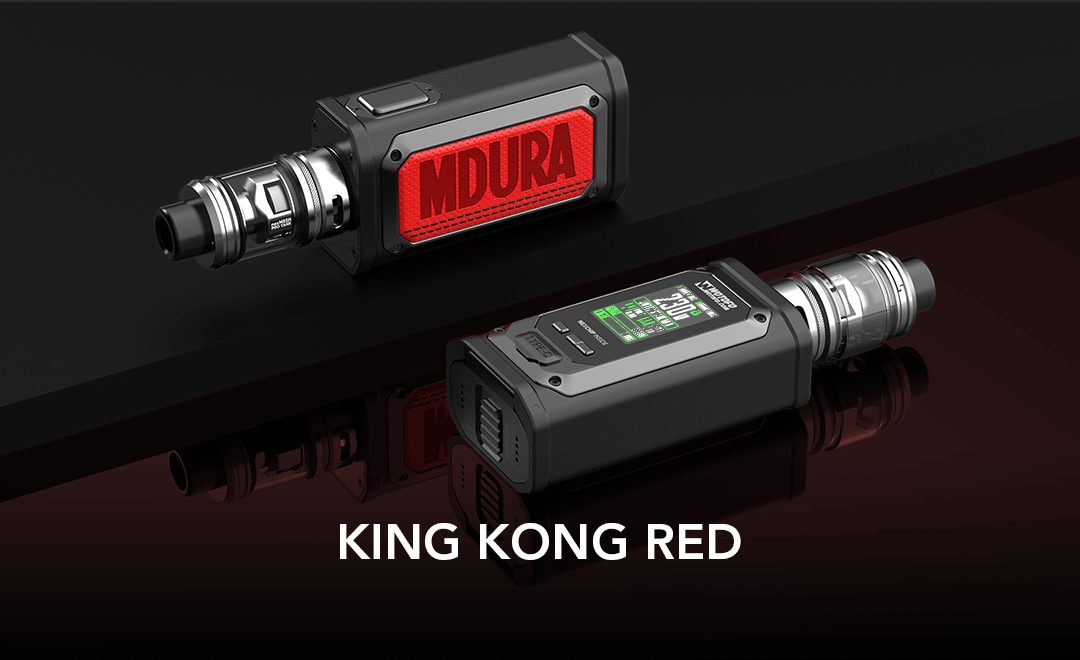

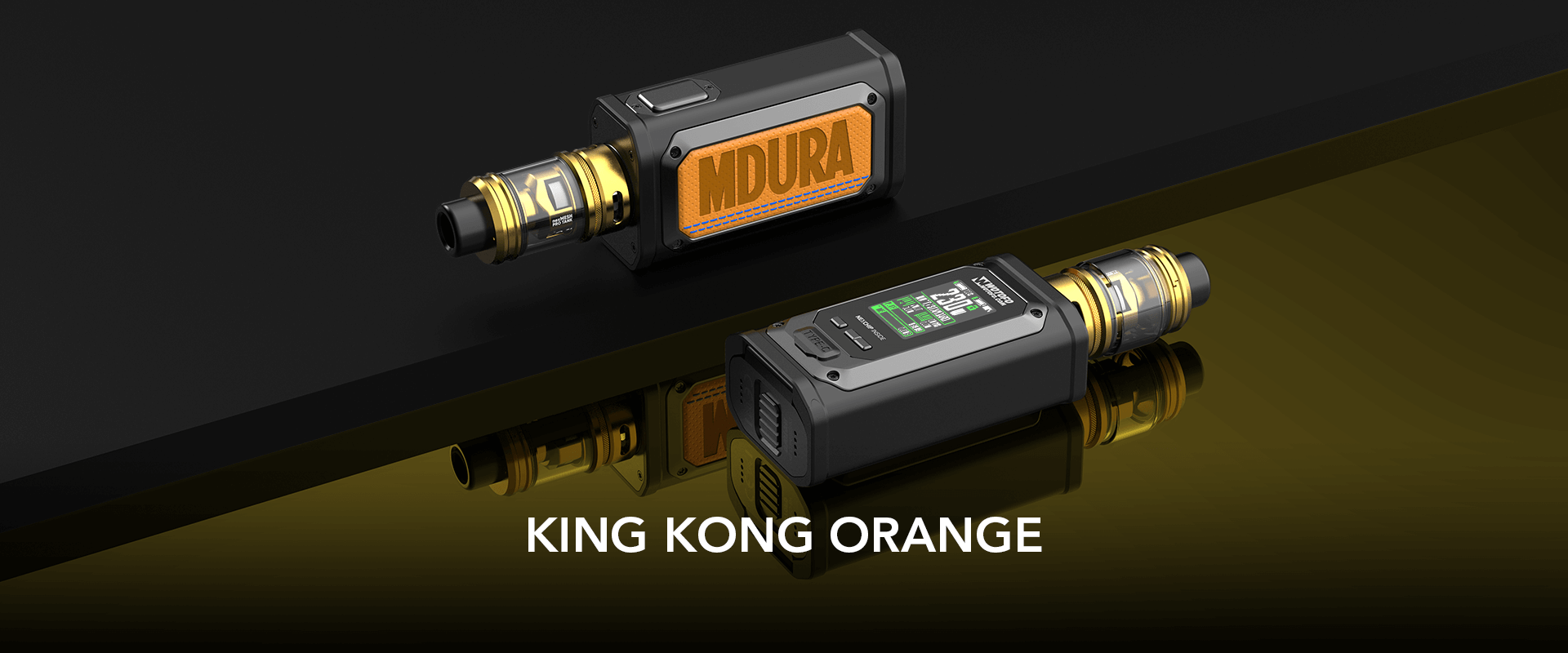

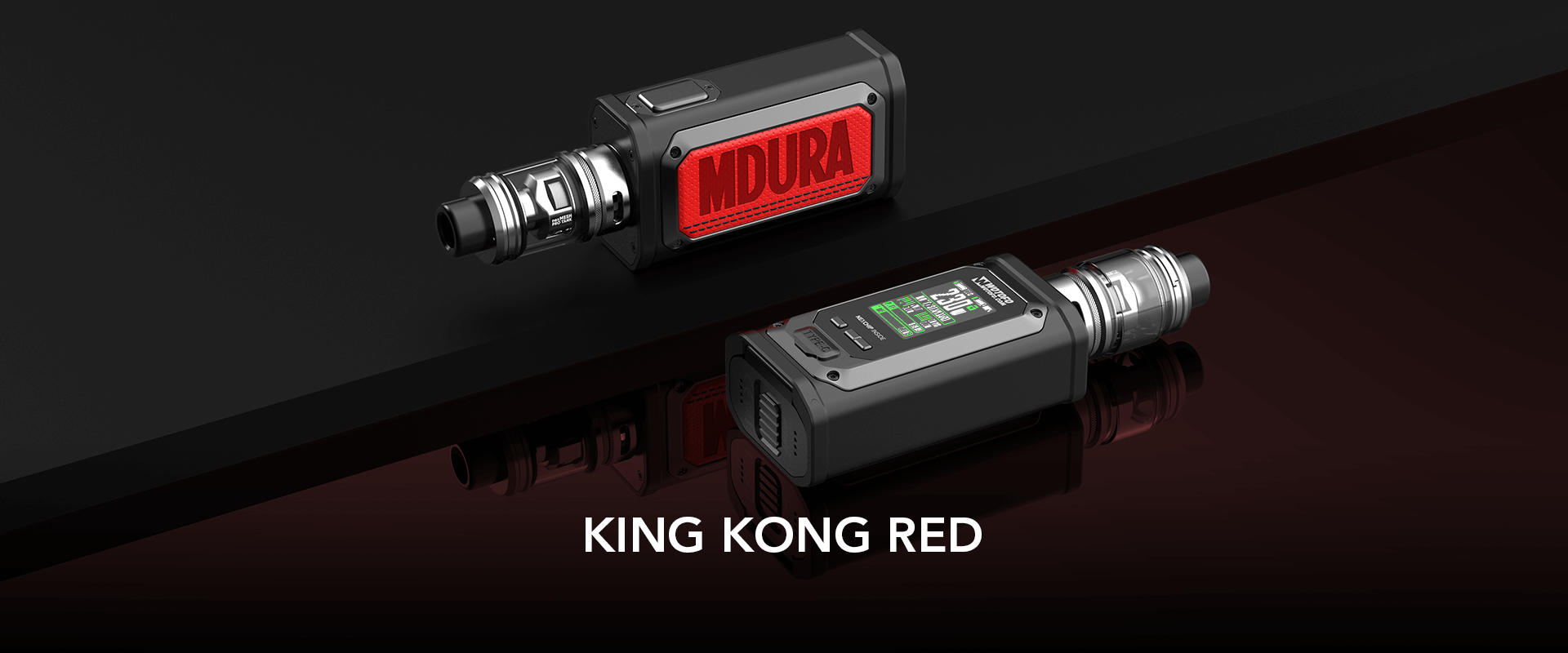

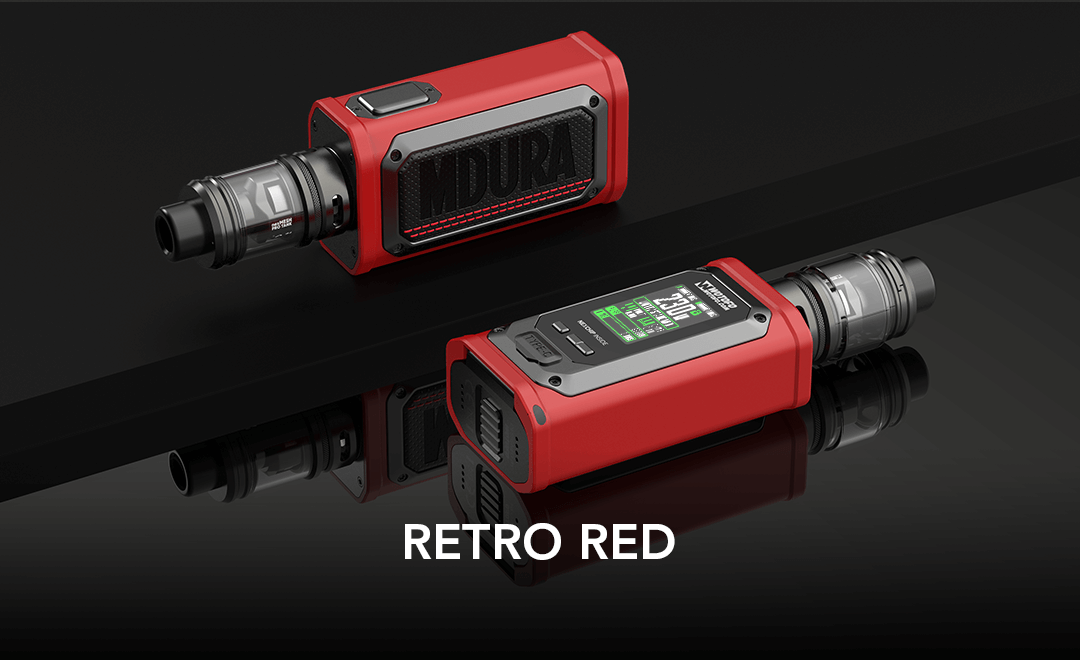

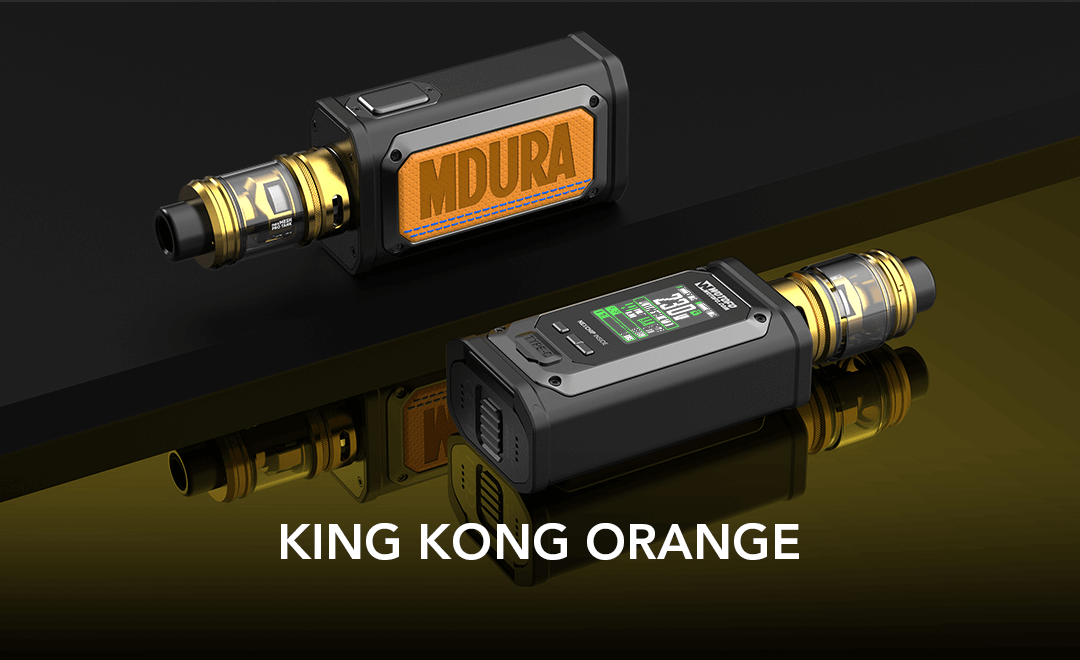

COLORS AVAILABLE
PRODUCT INFORMATION

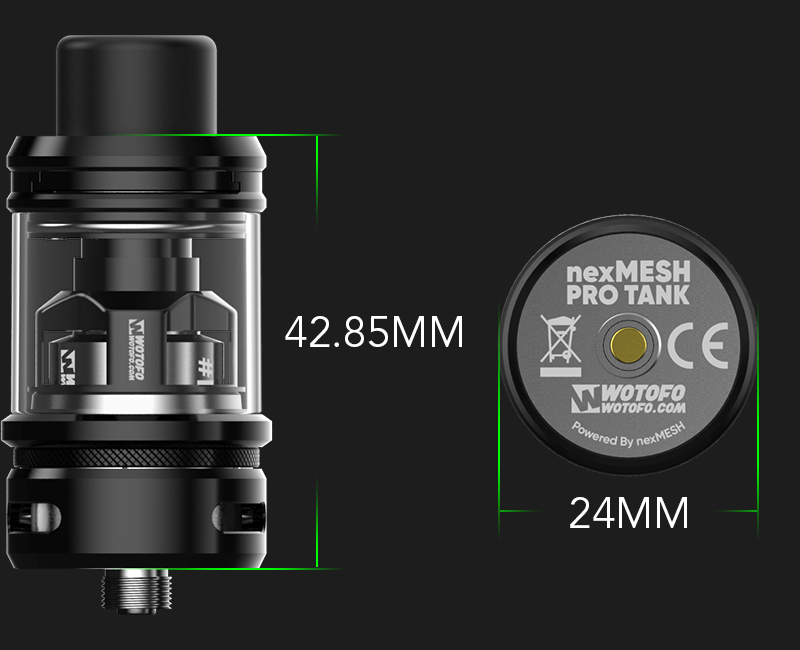

Tank Specifications (Standard Edition):
Tank Size: Φ24*42.85mm (without drip tip & 510 pin)
Tank Capacity:
4.5ml straight PCTG tube /
6ml bubble glass tube (with single coil replacement head)
3.5ml straight PCTG tube /
5ml bubble glass tube (with dual coil replacement head)
Drip Tip: 810 Delrin drip tip
Wattage Range: 50-80W
Filling Method: top filling
Airflow Type: adjustable bottom airflow
Threading: 510 thread

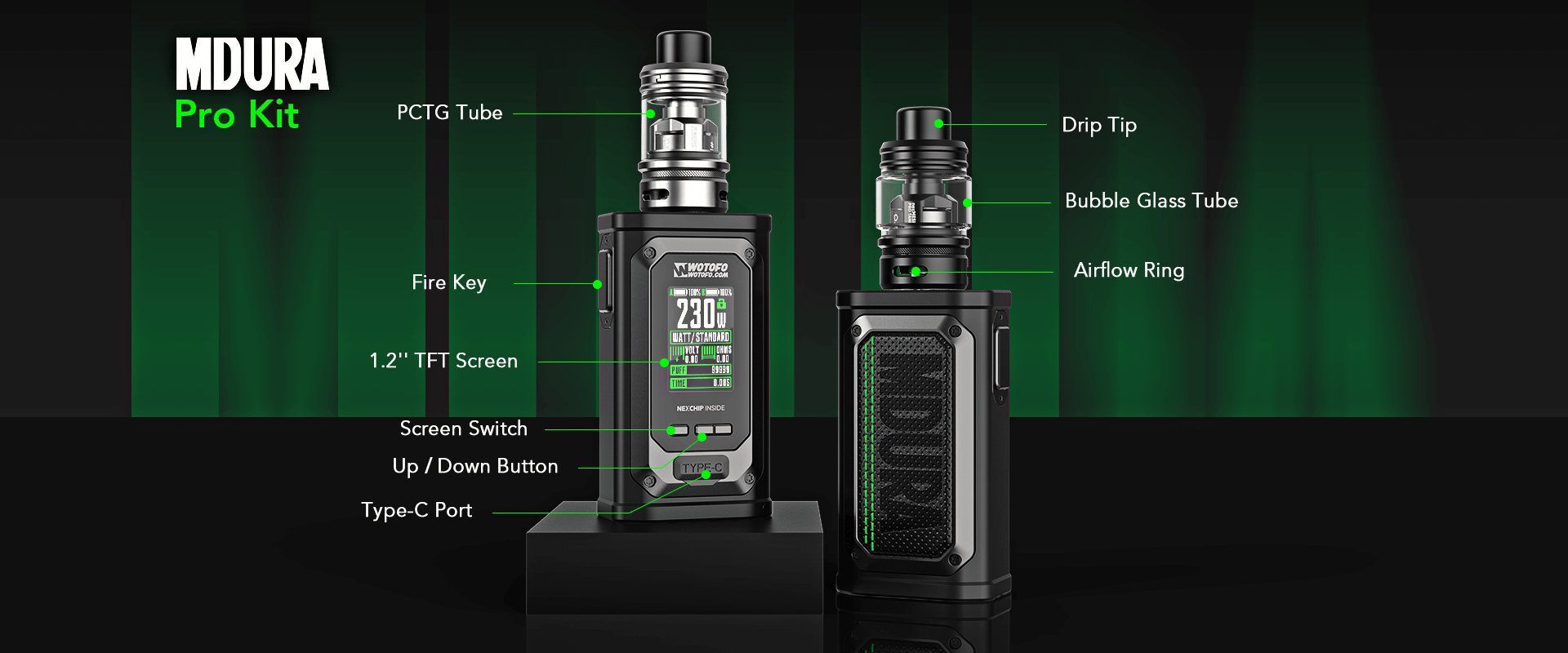

Mod Specifications:
Mod Dimensions:47.4mm*88.1mm*33.1mm
Body Material: zinc alloy + rubber
Display: 1.2'' TFT screen
Battery Type: dual 18650 battery (not included)
VW Modes: STANDARD / POWER / POWER+
Power Range: 5W-230W (VW)/ 10-230W (TC)
Temperature Range: 200F—600F / 100C—315C
TCR Value Range for Nickel: 400-800 (Default value: 600)
TCR Value Range for Titanium: 200-500 (Default value: 350)
TCR Value Range for SS: 10-300 (Default value: 105)
Charging Port: Type-C
Charging Current: DC 5V/2A
Atomizer Connection: 510 connection

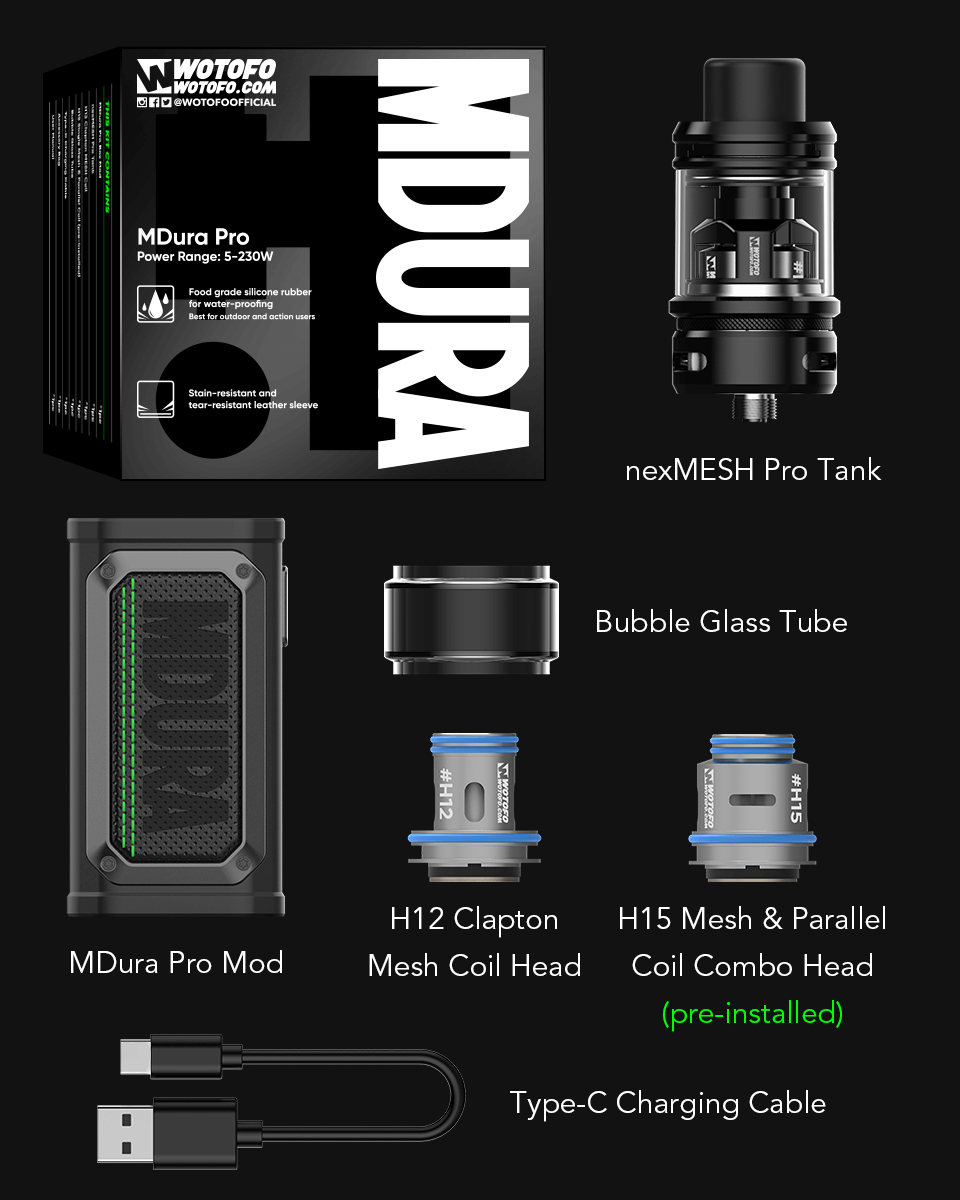

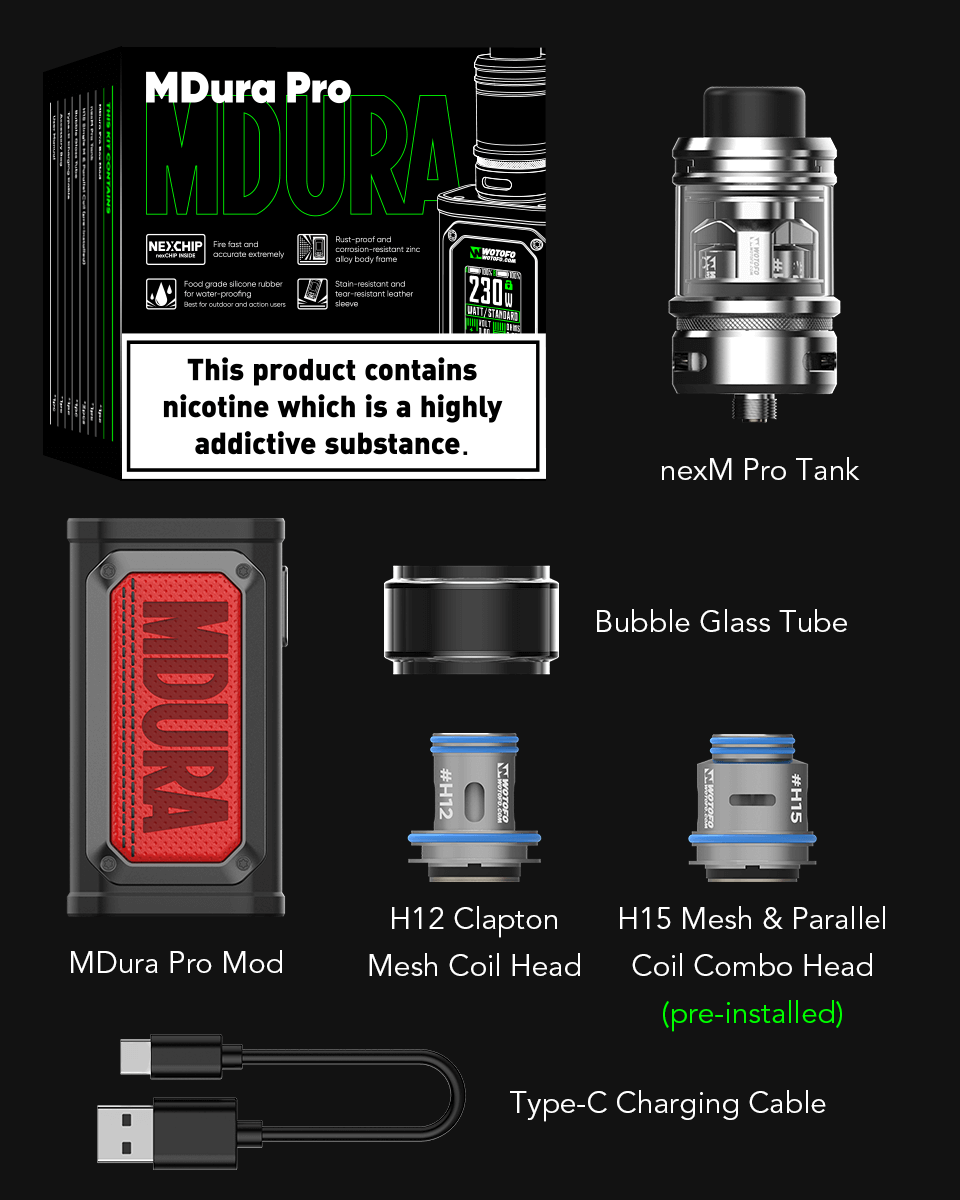

THE KIT INCLUDES
· 1 x MDura Pro Mod
· 1 x Type-C Charging Cable
· 1 x nexMESH Pro Tank
· 1 x H15 Mesh & Parallel Coil Combo Head (pre-installed)
· 1 x H12 Clapton Mesh Coil Head
· 1 x Bubble Glass Tube
· 1 x Accessory Bag
· 1 x User Manual
THE KIT INCLUDES
· 1 x MDura Pro Mod
· 1 x Type-C Charging Cable
· 1 x nexMESH Pro Tank
· 1 x H15 Mesh & Parallel Coil Combo Head (pre-installed)
· 1 x H12 Clapton Mesh Coil Head
· 1 x Bubble Glass Tube
· 1 x Accessory Bag
· 1 x User Manual
THE KIT INCLUDES
· 1 x MDura Pro Mod
· 1 x Type-C Charging Cable
· 1 x nexMESH Pro Tank
· 1 x H15 Mesh & Parallel Coil Combo Head (pre-installed)
· 1 x Bubble Glass Tube
· 1 x Accessory Bag
· 1 x User Manual

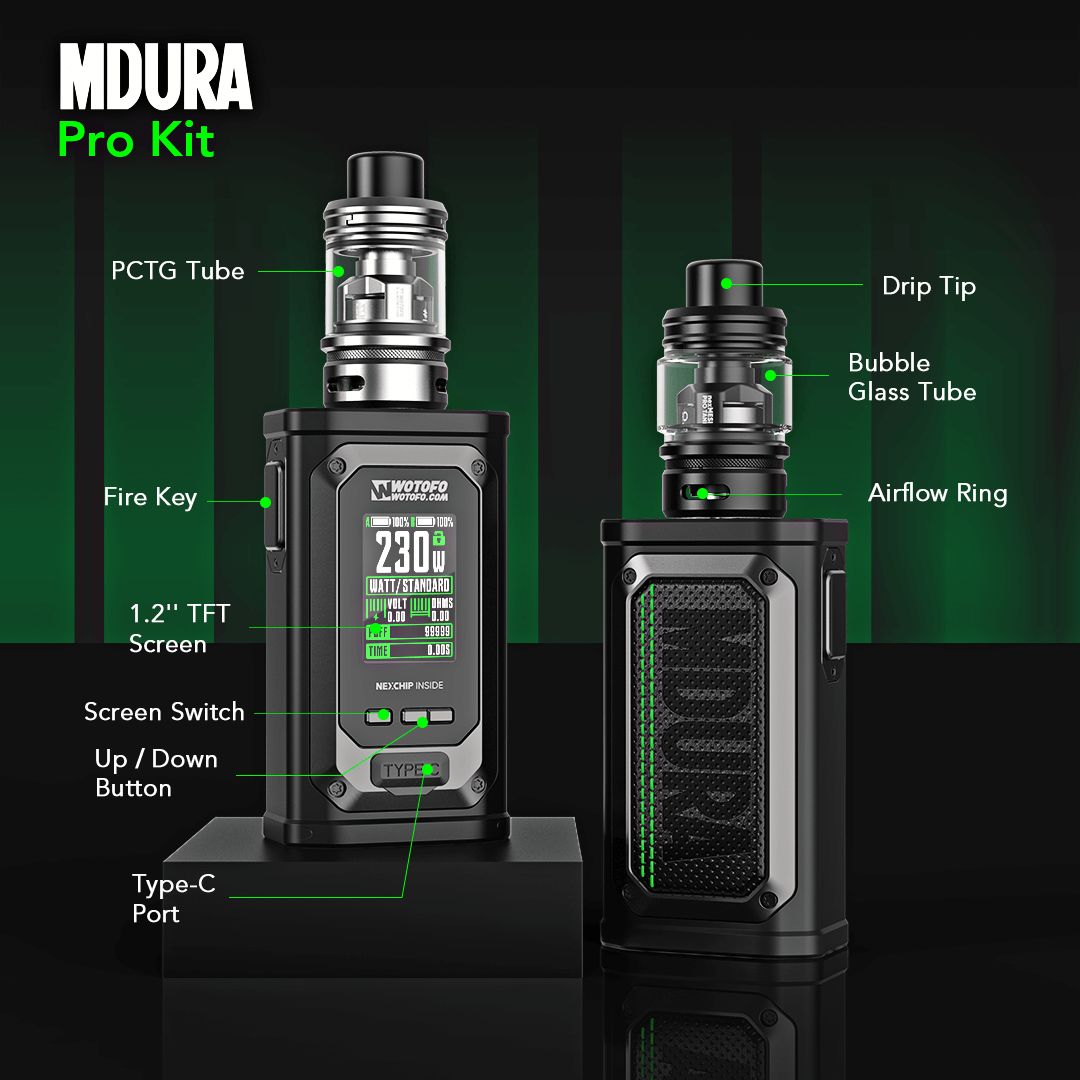

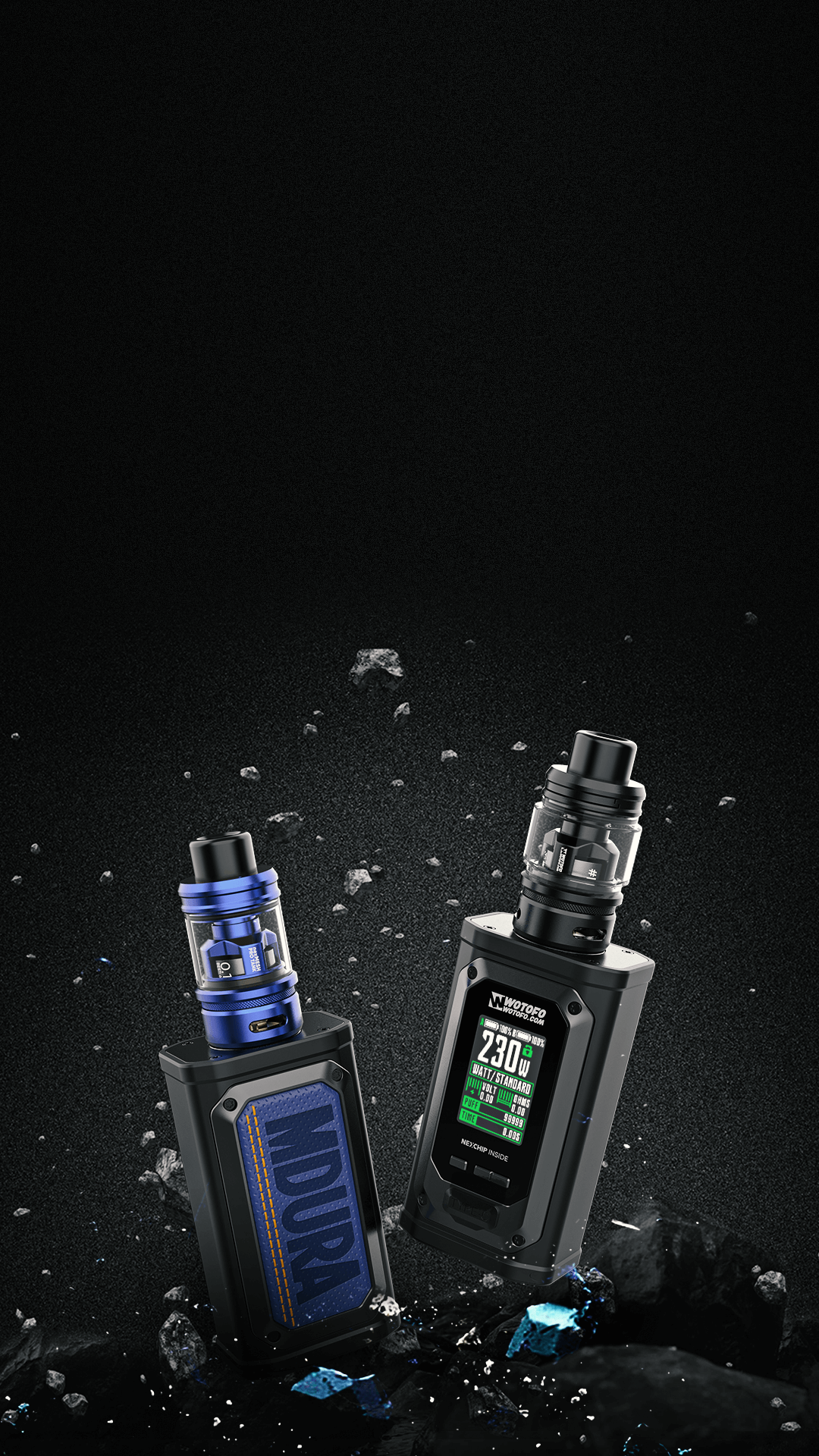

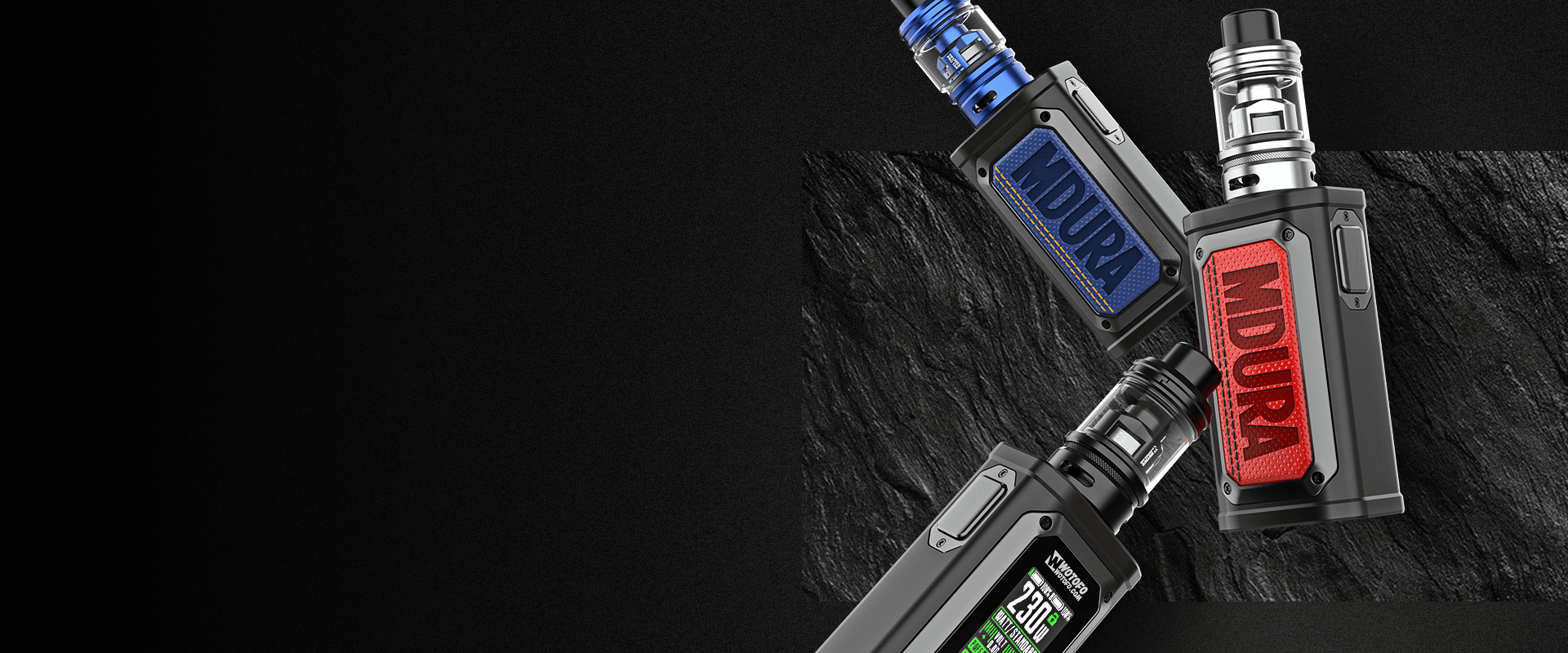

Meet the MDura Pro,
Outdoor Vapers!
Combining hardy designs with useful functions, the MDura Pro Kit has a box mod that is waterproof, dustproof and shockproof. It can withstand various out-door environments, tough enough to be dropped on hard surfaces without causing a damage. Being tough is not enough, the kit also features a tank that is capable to deliver max flavor, the nexMESH Pro!
Super Durable Materials,
Rugged Cool Appearance
Utilizing top quality shell materials and rubber coating treatment, the MDura Pro box mod can meet high standards of protection against shocks and drops. And its leather panel design furthers the stylish rugged look with comfortable tactile sensation.
IP67 Water Resistance
and Dust Resistance
The MDura Pro Mod is engineered to meet the IP67 specification, which means it's a 6 against dust (complete protection), and a 7 against water (30 minutes in water that’s at least 0.5 meters deep, up to 1 meter deep).

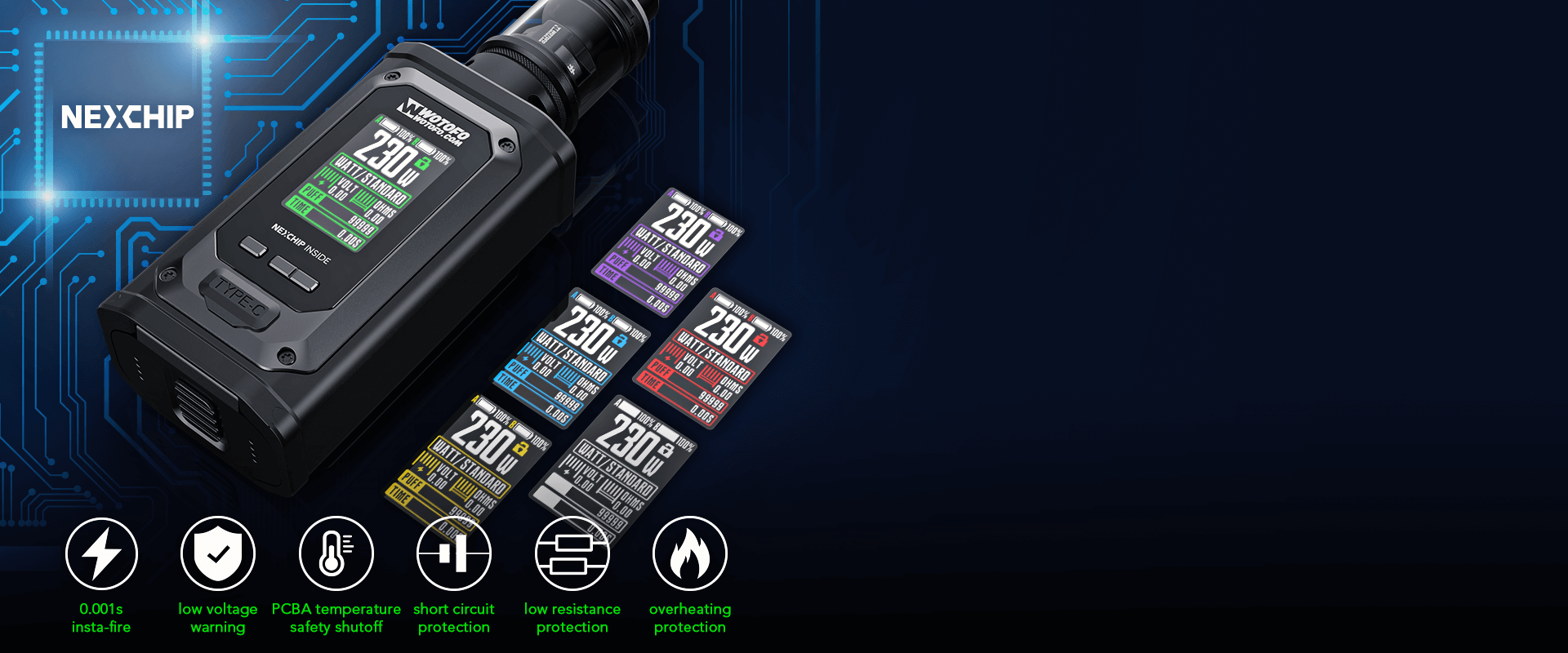

Powered by nexCHIP with the Most
Advanced Tech on the Market
Equipped by nexCHIP technology, the MDura Pro Mod has various safety features, including low voltage warning, PCBA temperature safety shutoff, short circuit protection, low resistance protection, and overheating protection. Other great features are: easy-to-use interface, six theme colors, and 0.001 seconds firing speed.

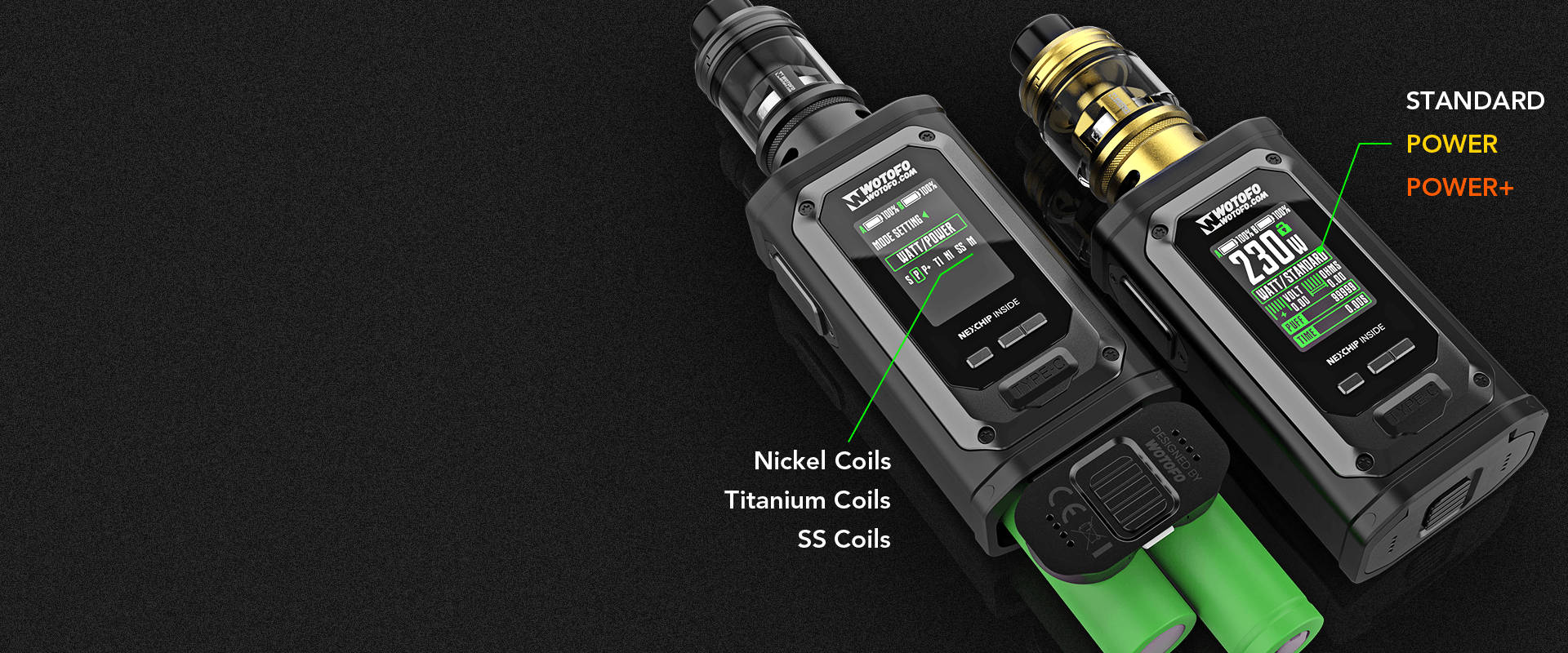

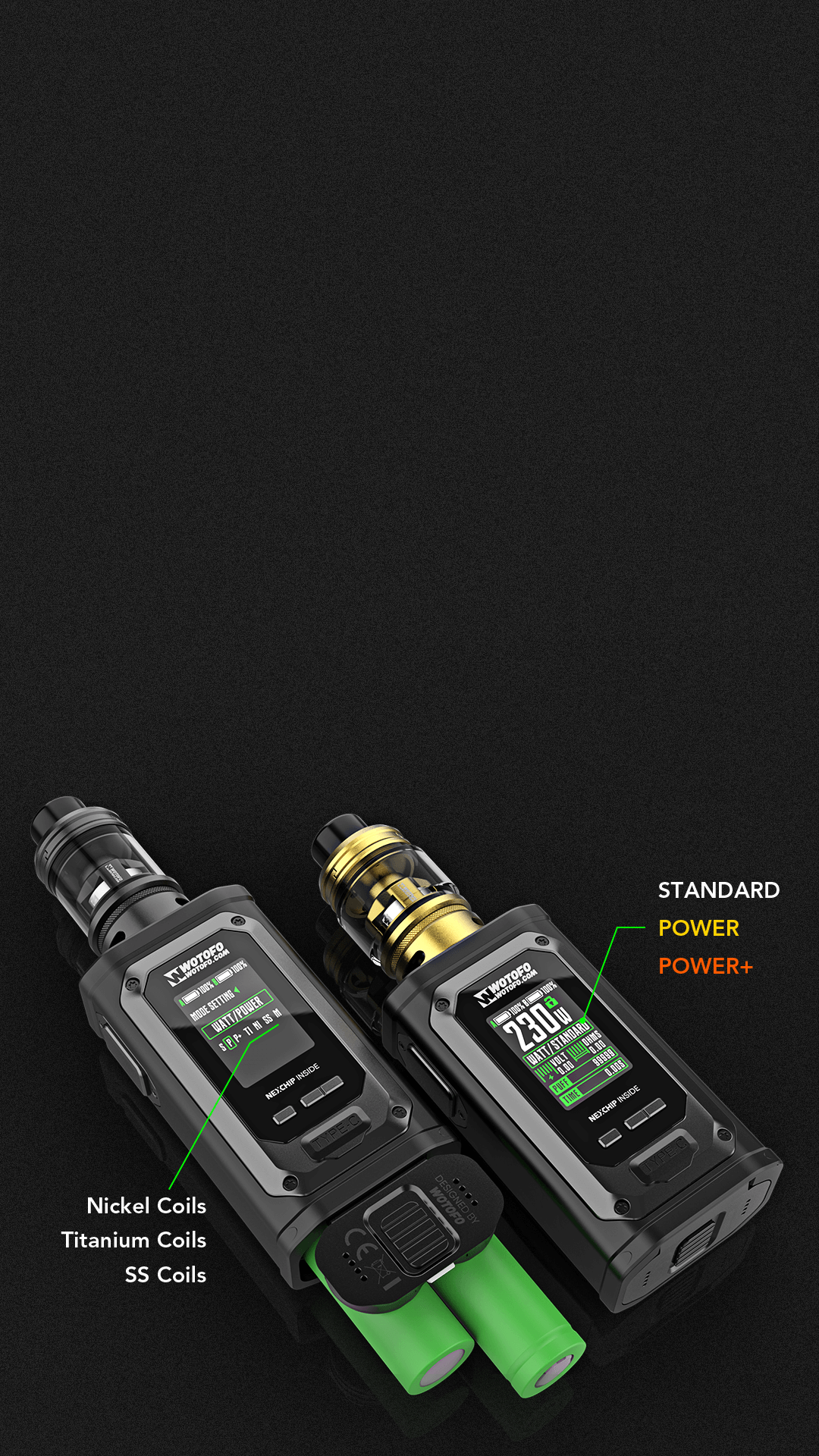

Powerful VW Mode Paired
with TCR Mode
With accommodation of dual 18650 batteries, the MDura Pro box mod is able to output a maximum power of 230W under 3 wattage modes (STANDARD / POWER / POWER+). For TCR Modes, it supports Nickel, Titanium and SS coils for safe temp control vape.

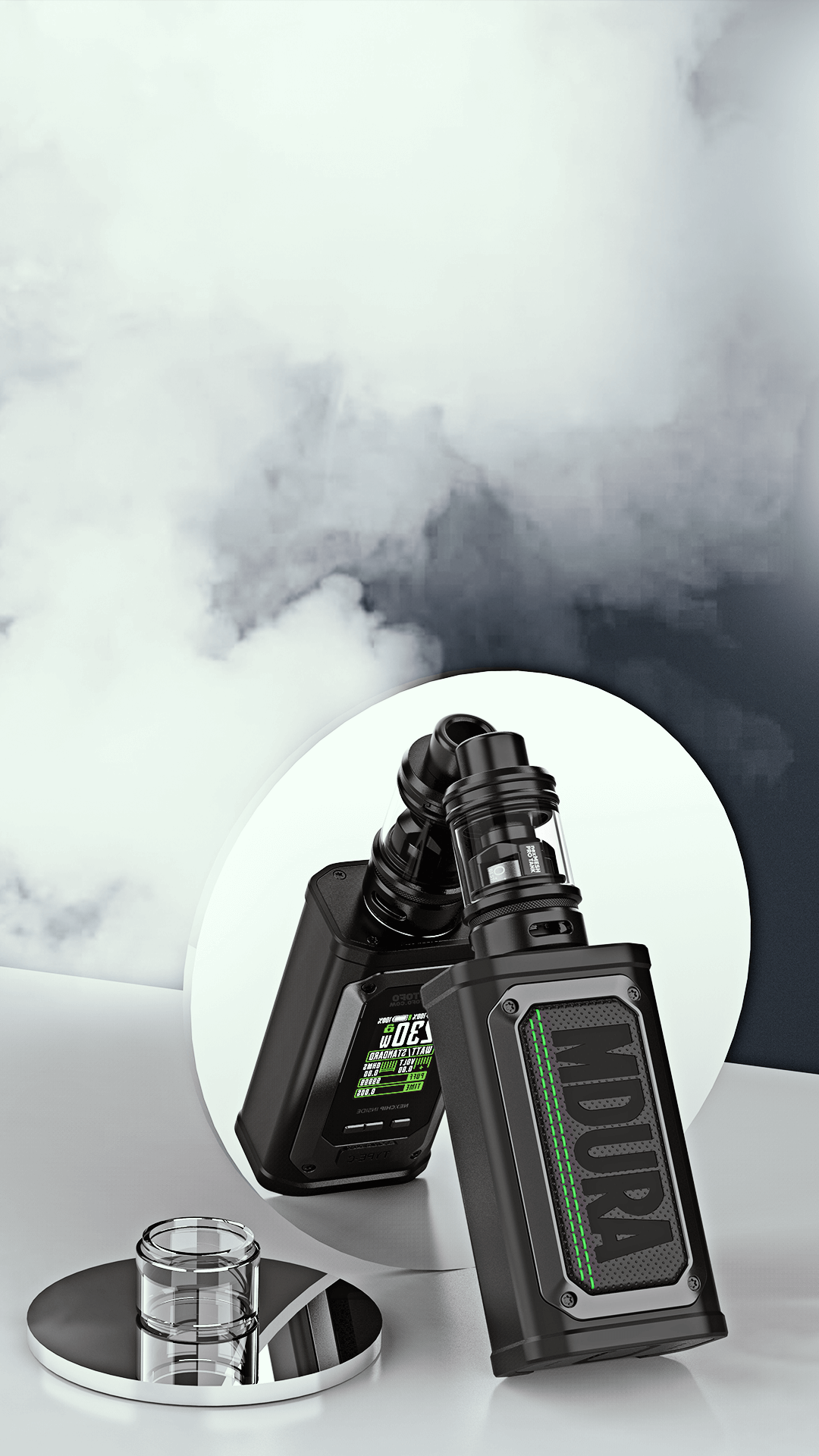

Rugged PCTG Tube and Large
Capacity Glass
Tube Both Included
The pre-installed tank tube is made of PCTG material, so its transparency and density are very similar to glass. It is rugged, high temperature resistant, safe and durable. Besides the PCTG Tube, the package also includes a 4.5ml bubble glass tube.
nexMESH PRO COIL FAMILY

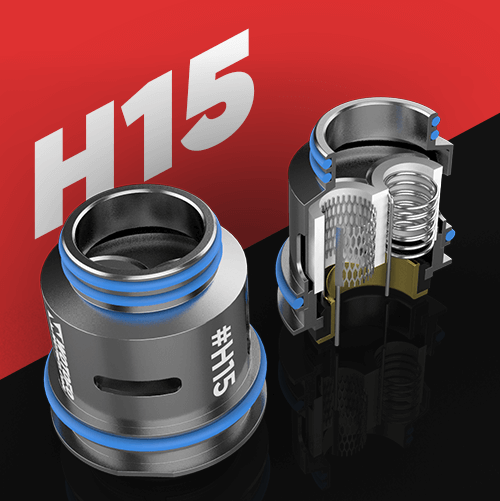

#H15 Mesh & Parallel Coil
Rich Strong Flavor
Resistance: 0.15Ω
Power Range: 50-80W
Best At: 65-80W
(included)

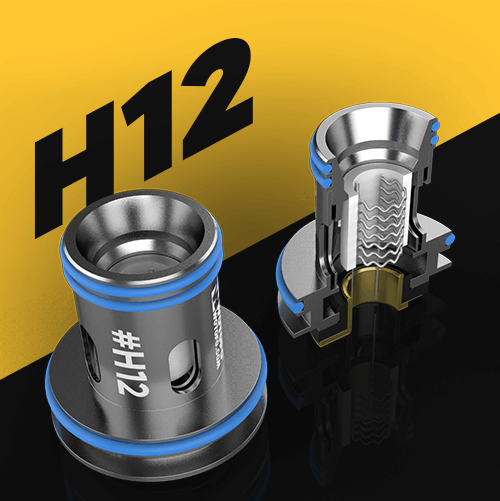

#H12 Clapton Mesh Coil
Intense Warm Flavor
Resistance: 0.20Ω
Power Range: 40-75W
Best At: 55-75W
(included)

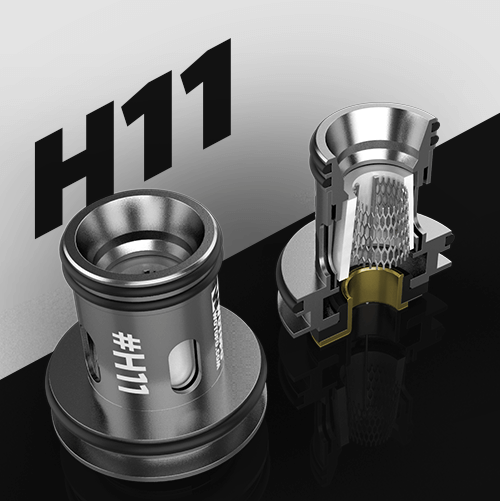

#H11 Conical nexMESH Coil
Velvet Smooth Flavor
Resistance: 0.20Ω
Power Range: 50-70W
Best At: 60-70W
(not included)

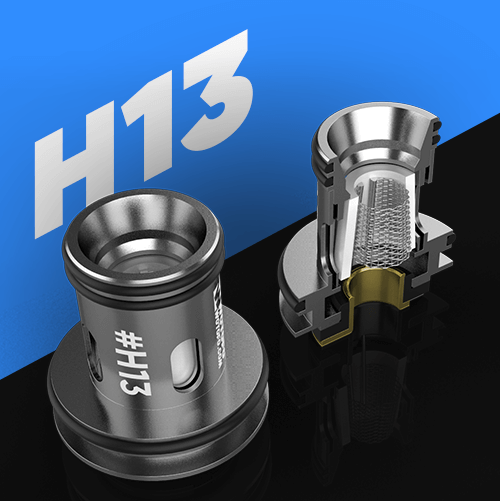

#H13 Conical Net Mesh Coil
High-Density Netting
Highlighted Sensation
Resistance: 0.15Ω
Power Range: 50-80W
Best At: 65-78
(not included)

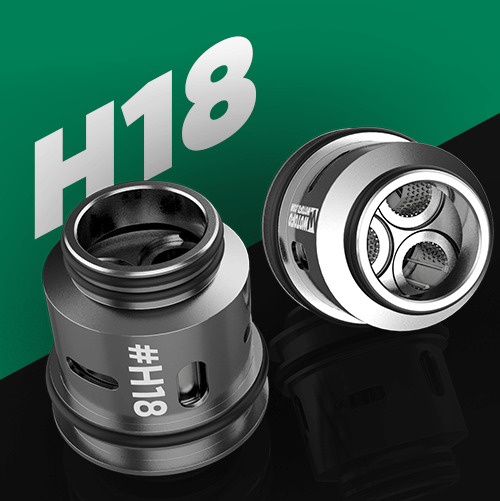

#H18 Triple Mesh Coil
Thicker Vapor
Amazing Flavor
Resistance: 0.15Ω
Power Range: 65-95W
Best At: 80-90W
(not included)

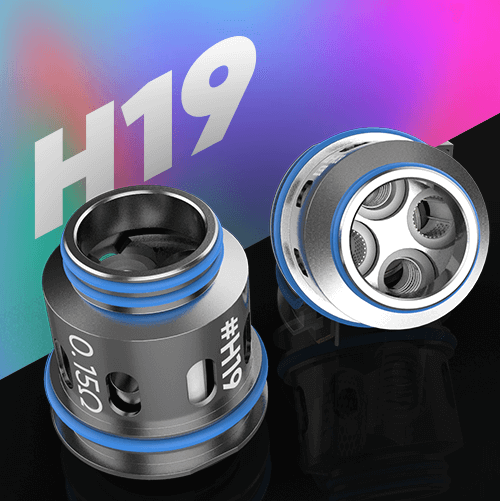

#H19 Wire & Mesh Quad Coil
Hybrid Quad Coil
Amplified Flavor
Resistance: 0.15Ω
Power Range: 65-95W
Best At: 80-90W
(not included)

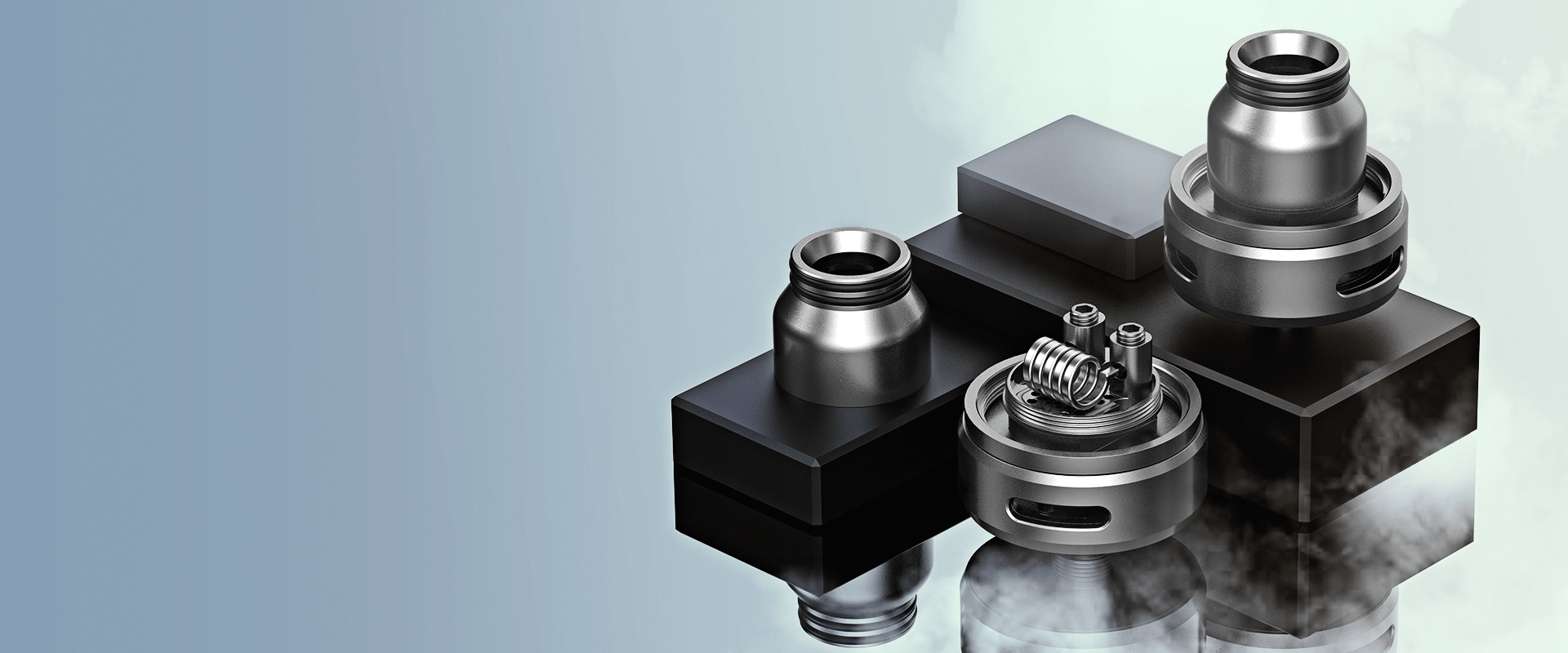

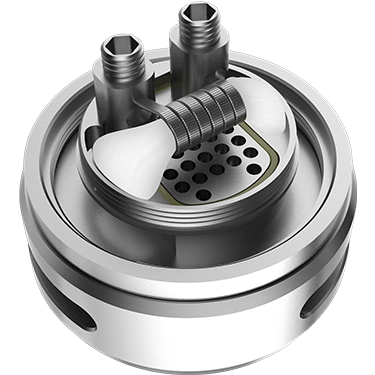

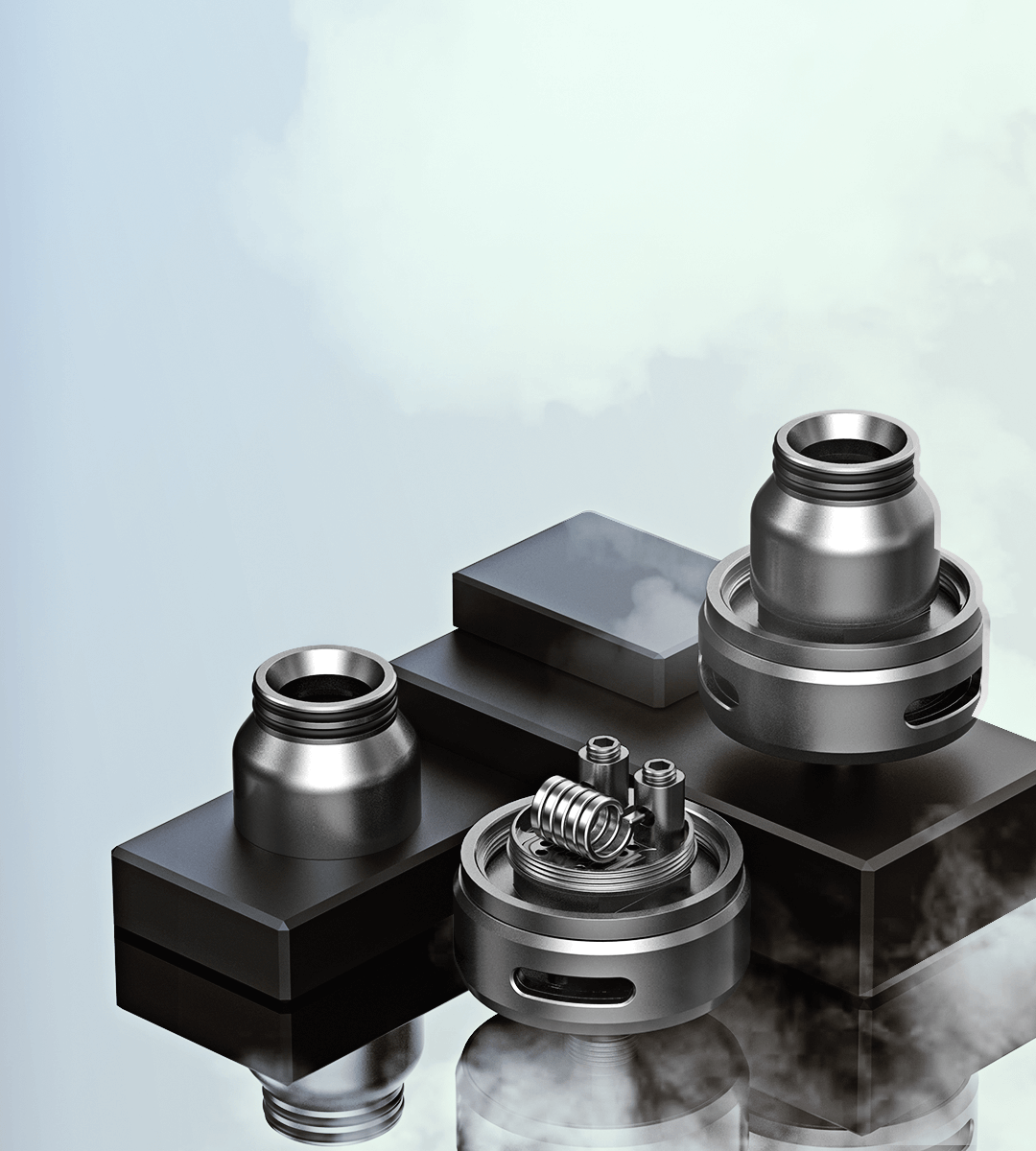

#H17 Rebuildable Deck Kit
Black, Gunmetal, SS Available
(not included)
RBA BUILDING

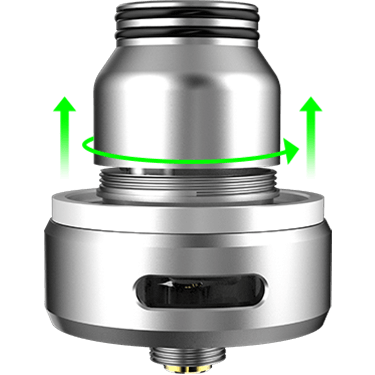

Screw the build deck onto your mod, then take off the coil cap.

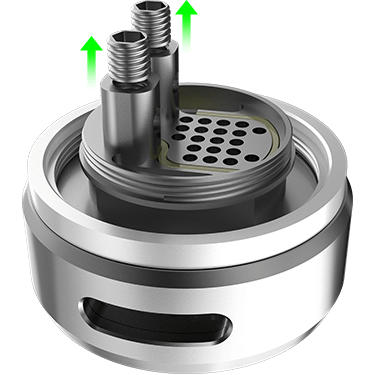

Loosen the screws.

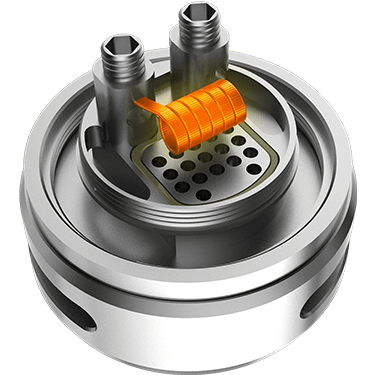

Install the coil and tighten the screws, then cut off excess coil leads. Dry burn the coil at 25W to make it heat evenly.
Insert the cotton, saturate the coil and cotton.

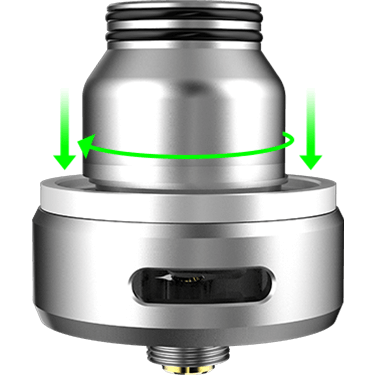

Put the coil cap back on, and then attach the deck back onto the tank, now it’s good to go.

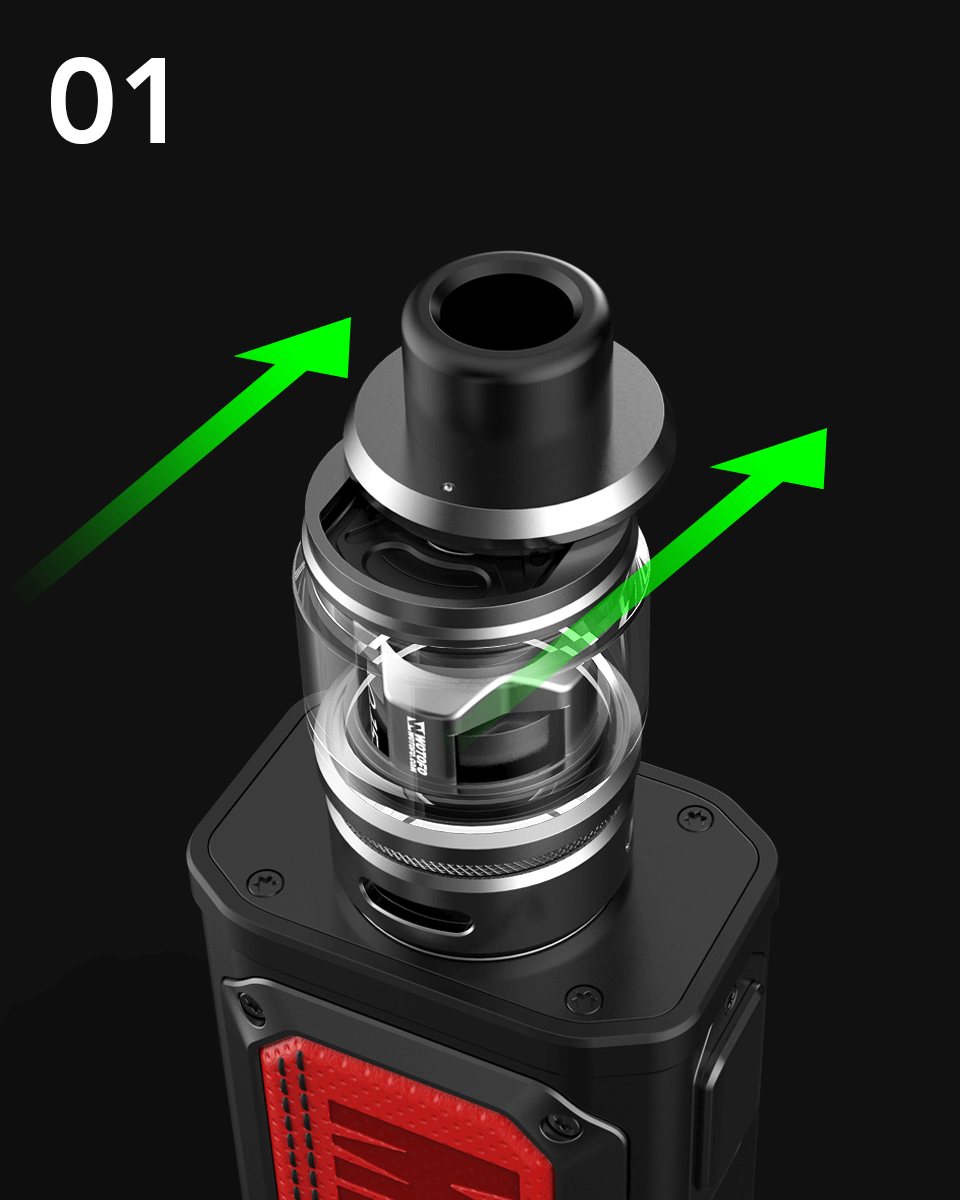

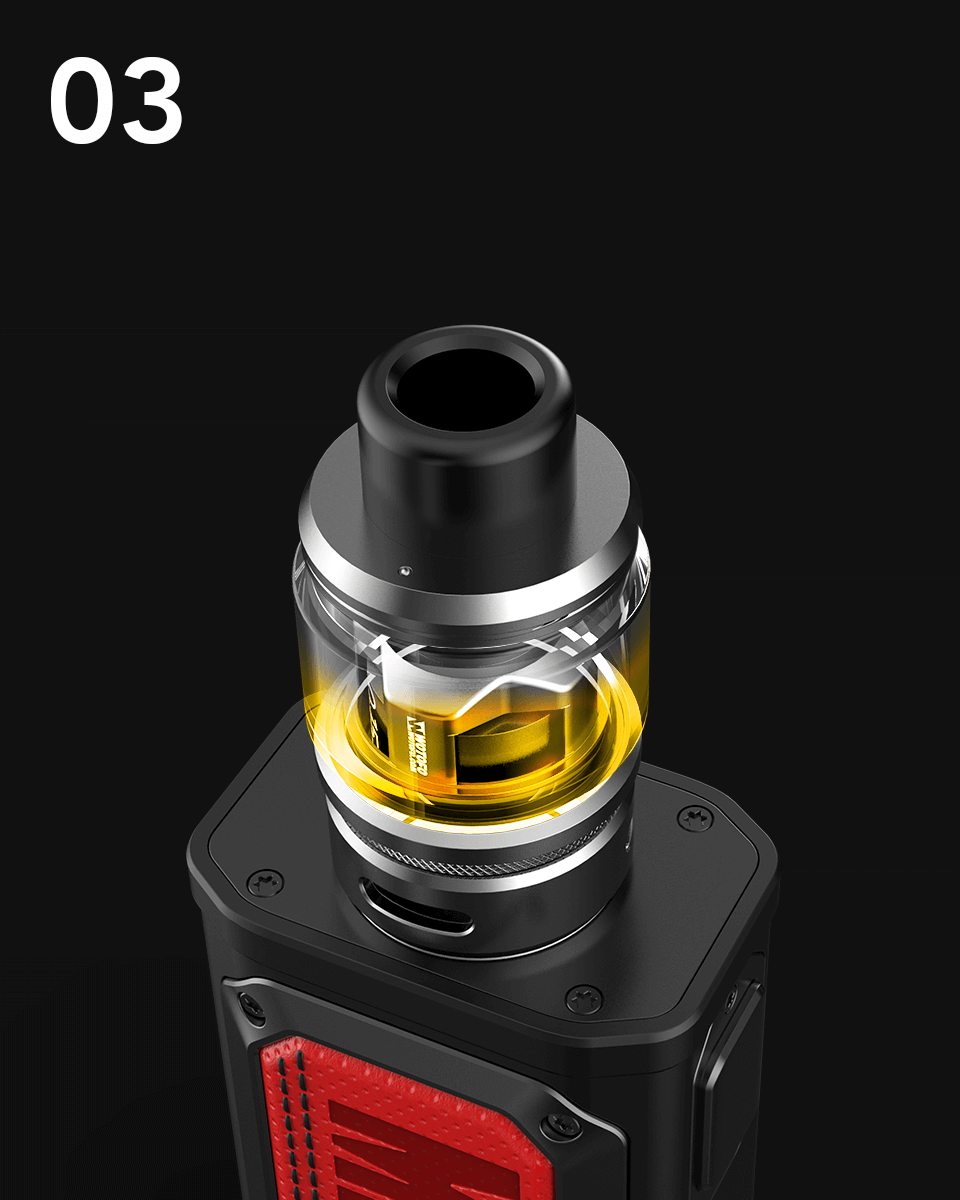

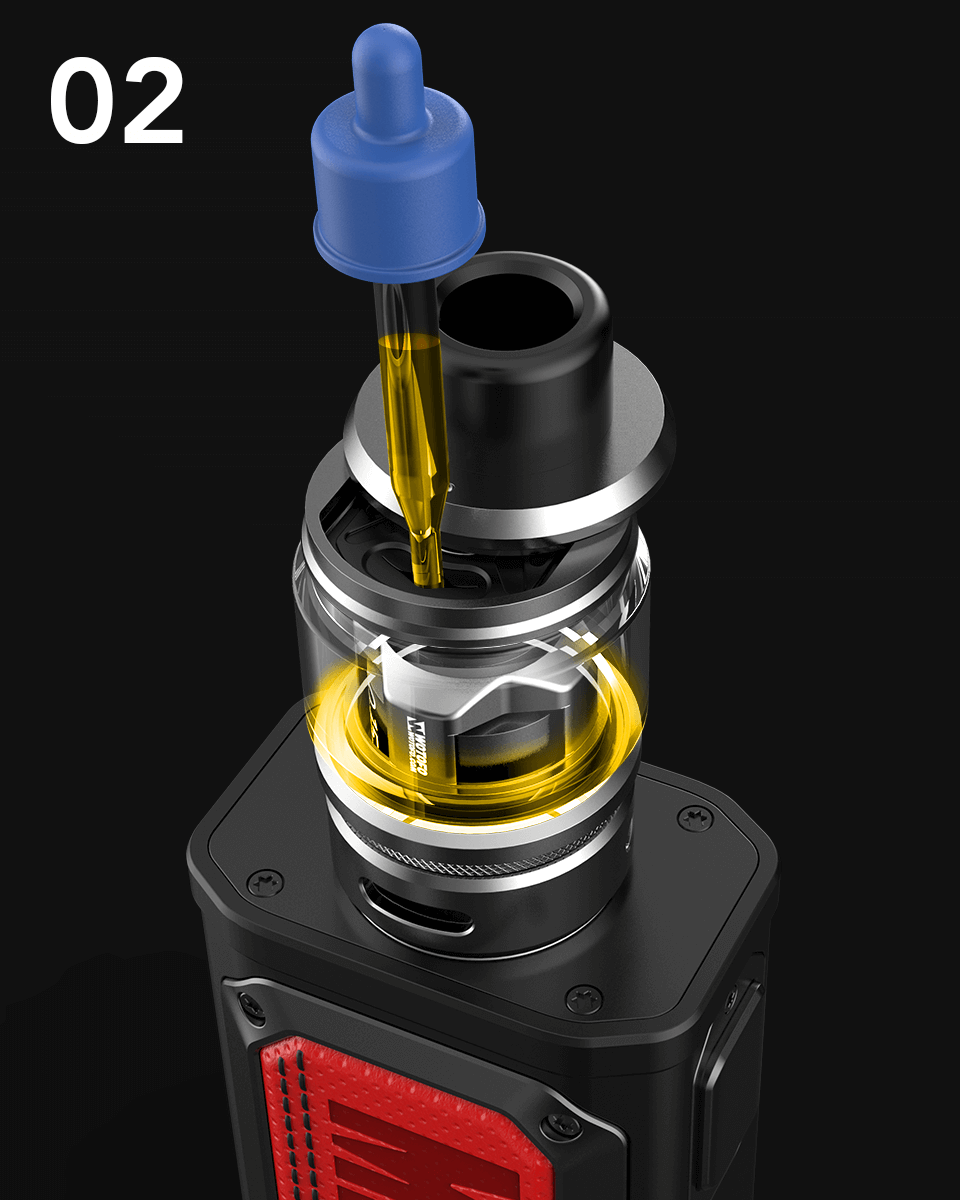

STEPS TO FILL THE TANK
